SKETCHBOARD PLANS
OPEN AIR CAMPAIGNERS - USA / Box D / Nazareth / PA / 18064
| Supplies
Home |
Over the years, our staff in various parts of the world have put together plans to build sketch boards. They are designed to be simple, but very practical, especially when being constructed and used in third-world countries. These designs are by no means drafted in a professional manner, however, as they are updated and available to this office, we shall post them here for your consideration. These plans may be modified and/or interchanged to suit your particular situation. Should you develop revised plans and find them useful, or come in contact with someone else who has such, please send us a copy so we may share them with freely others in His Kingdom work out in the open air.
FOLDING SKETCHBOARD: | Gallery
| Blueprints
| Materials
List
OTHER BOARDS

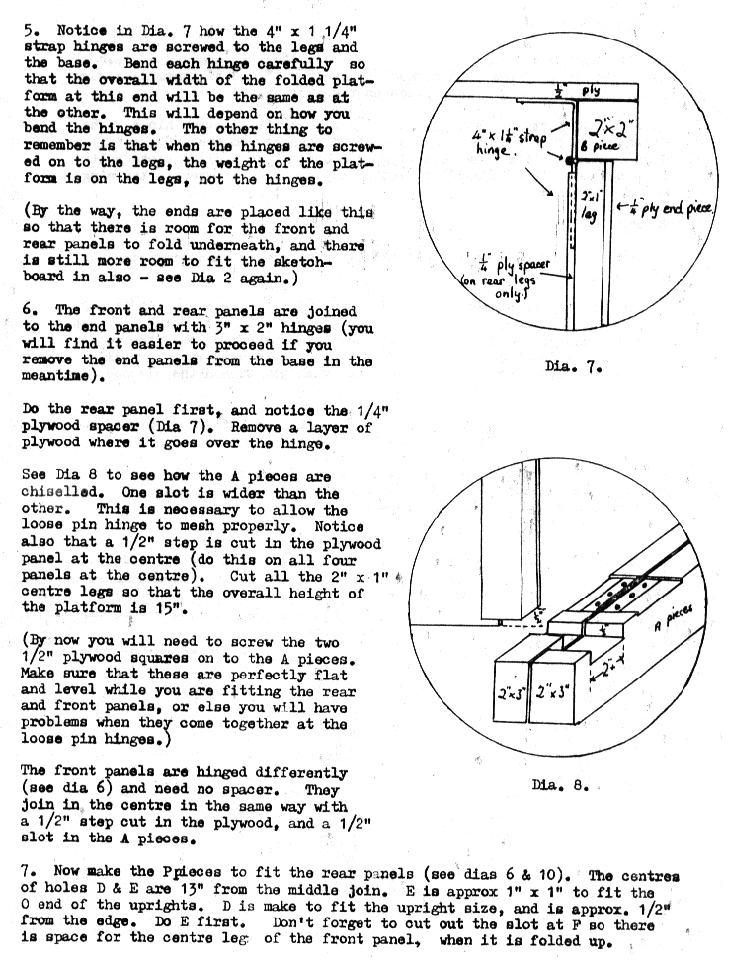

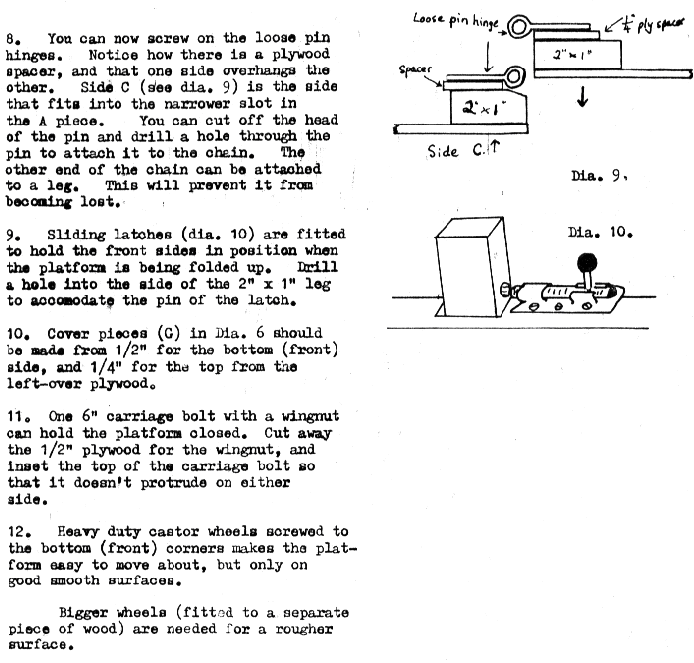

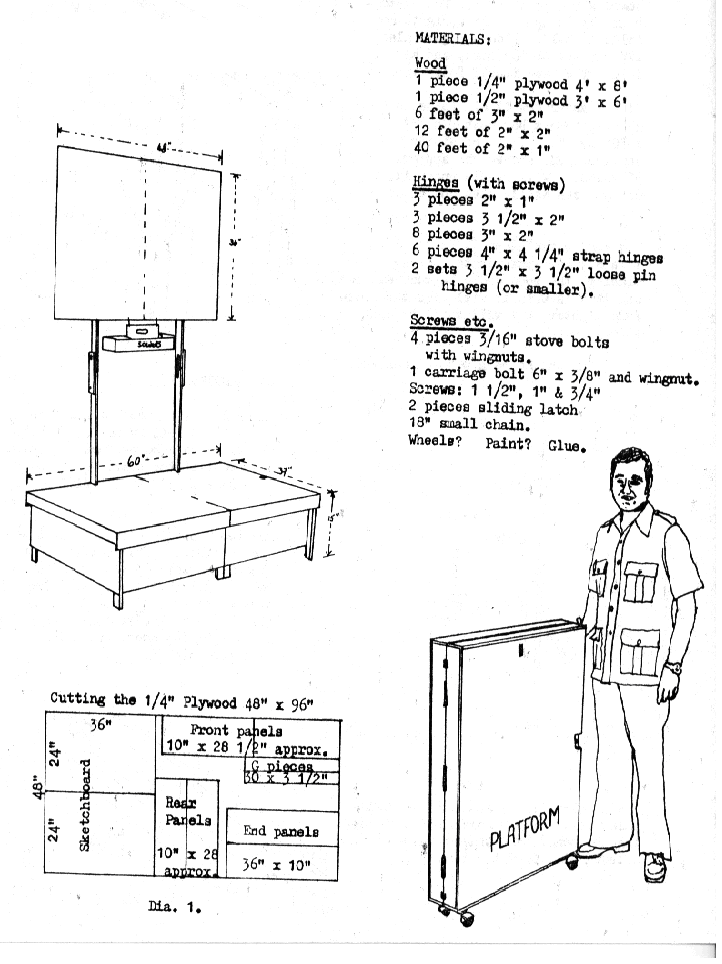

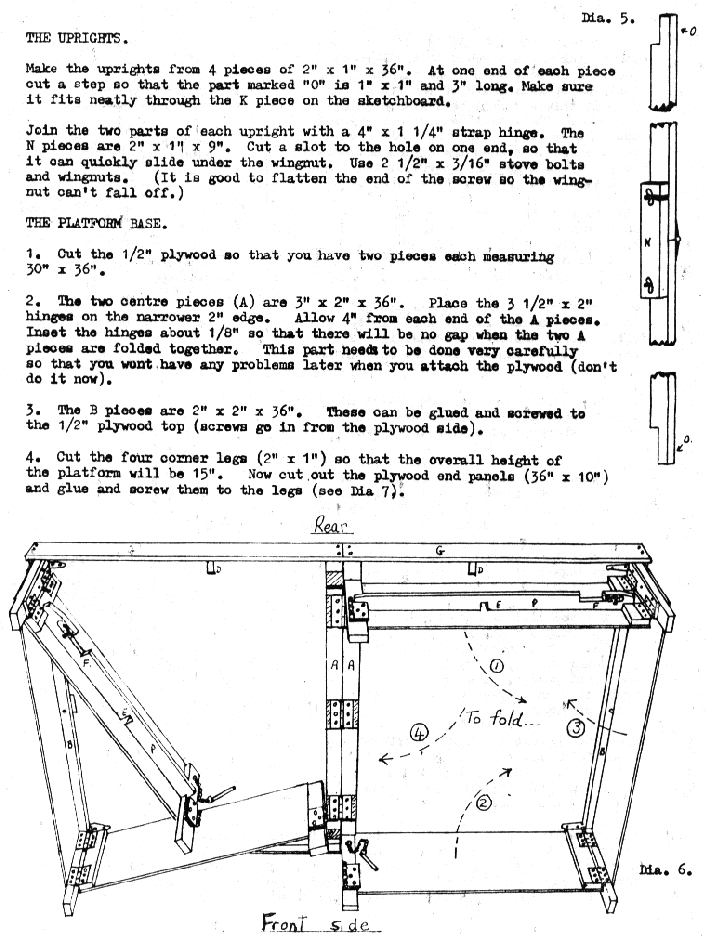

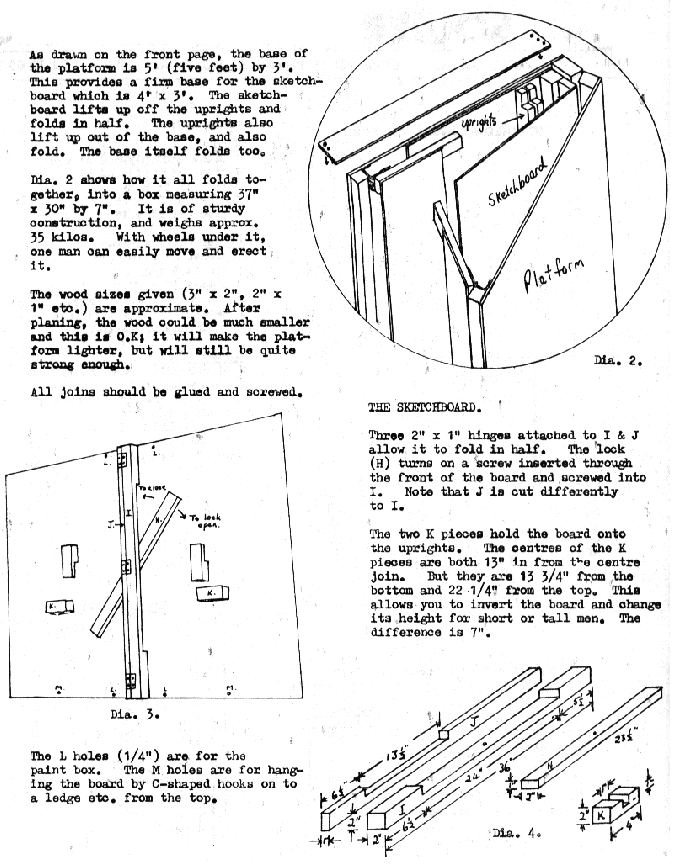

SKETCHBOARD PLANS #1 (Third-World "Sowers" type)
PDF DOWNLOAD
Click picture for larger view

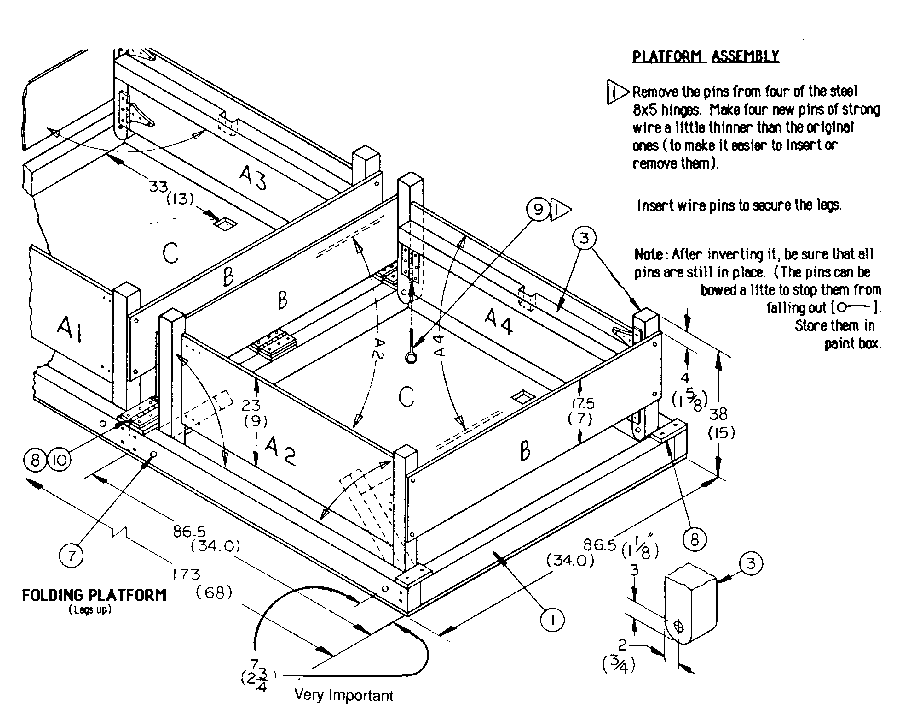

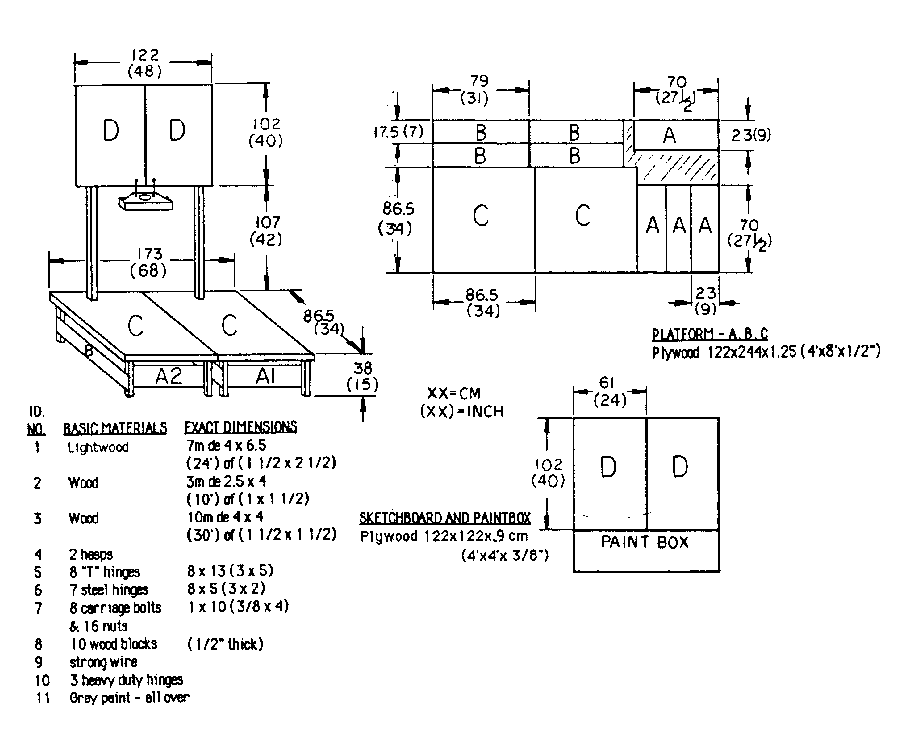

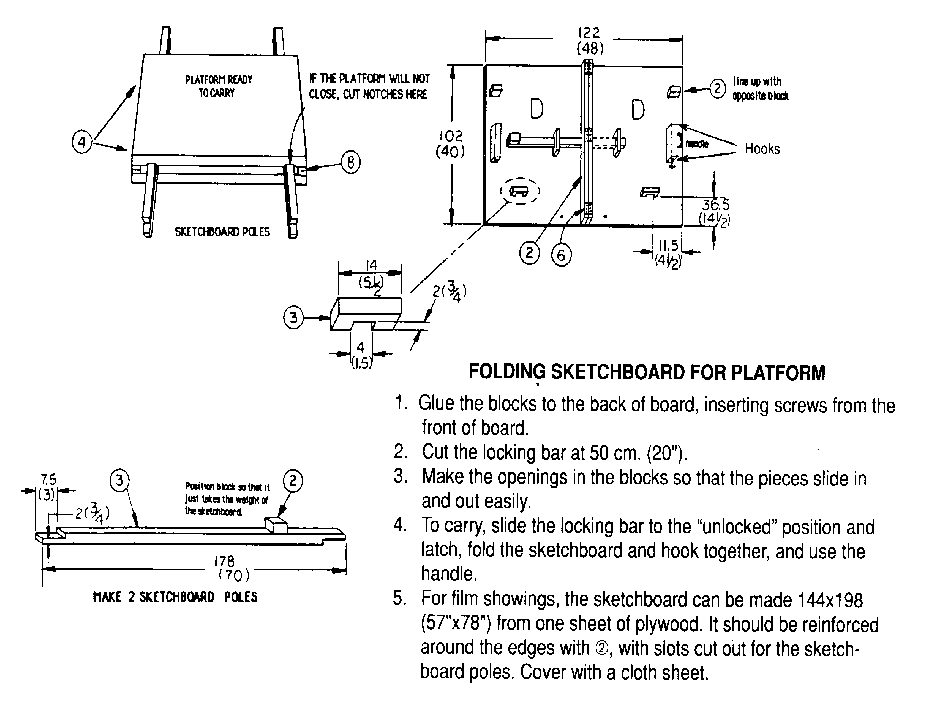

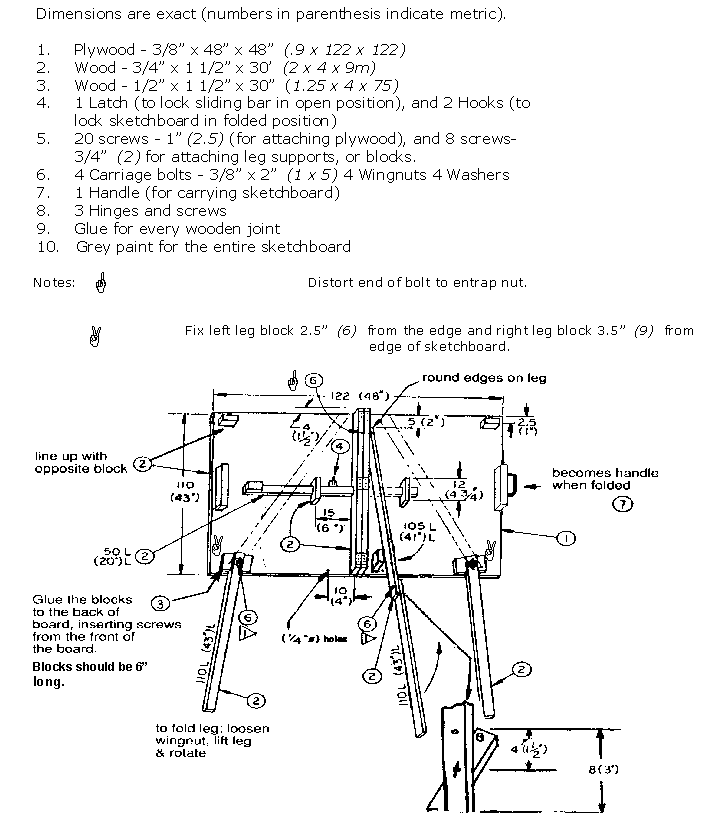

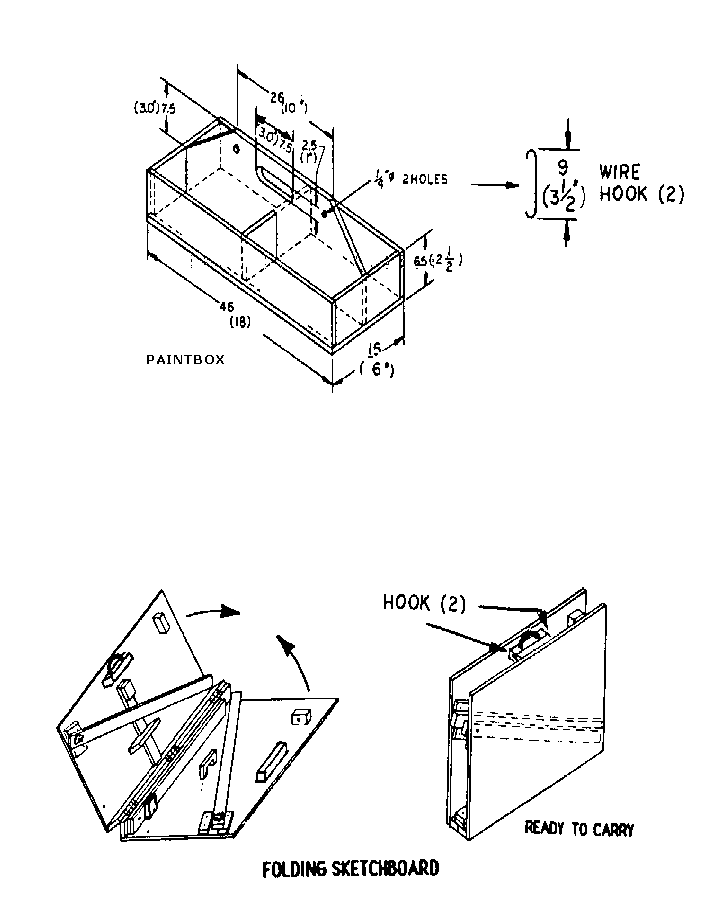

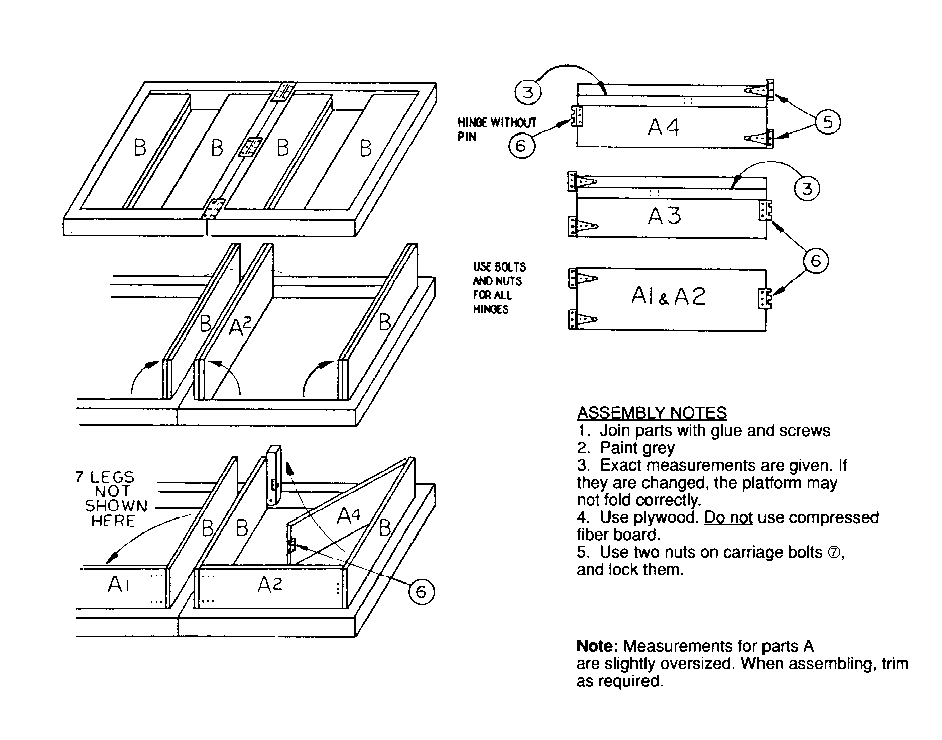

SKETCHBOARD PLANS #2 (Revised sketchboard & Platform)

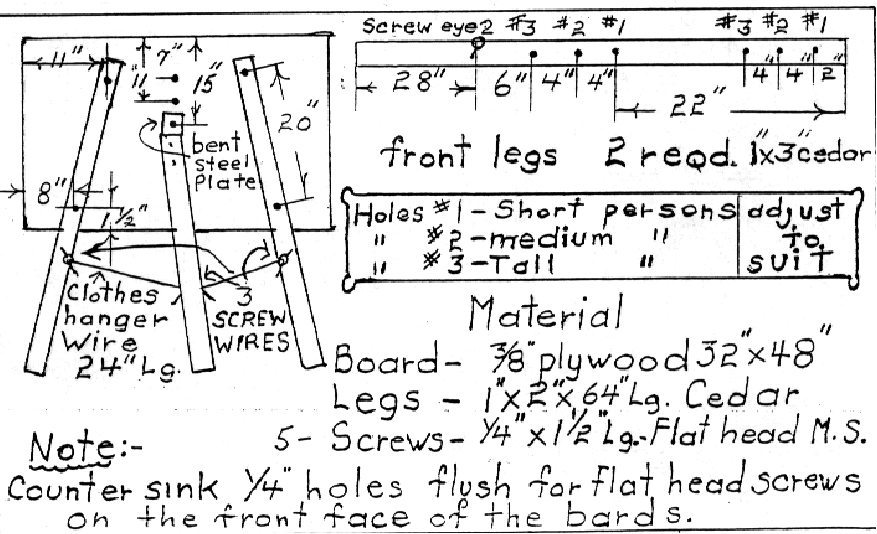

SKETCHBOARD PLANS #3 from OAC Canada

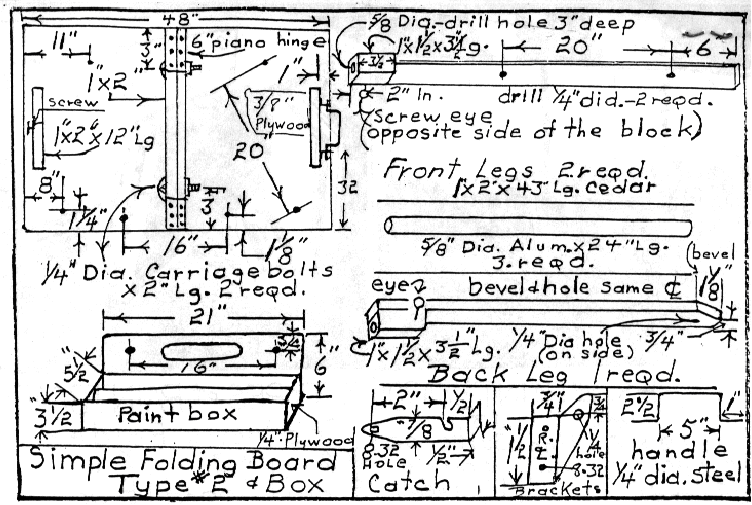

SKETCHBOARD PLANS #4 from OAC Canada.

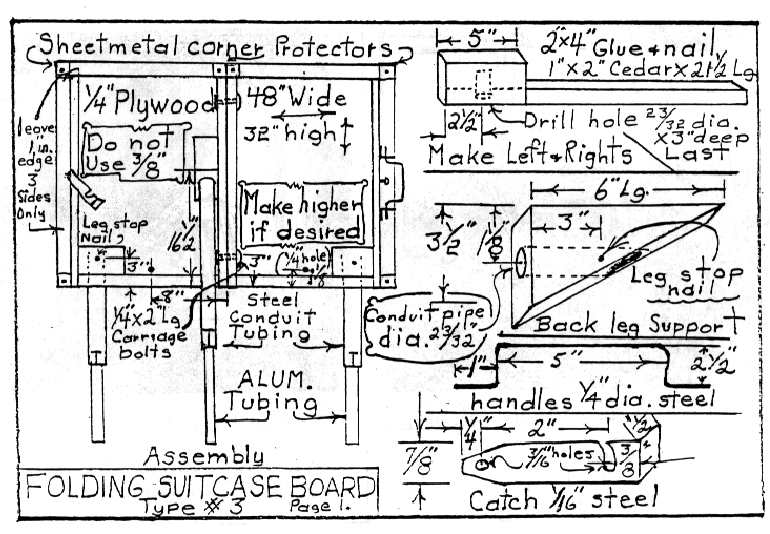

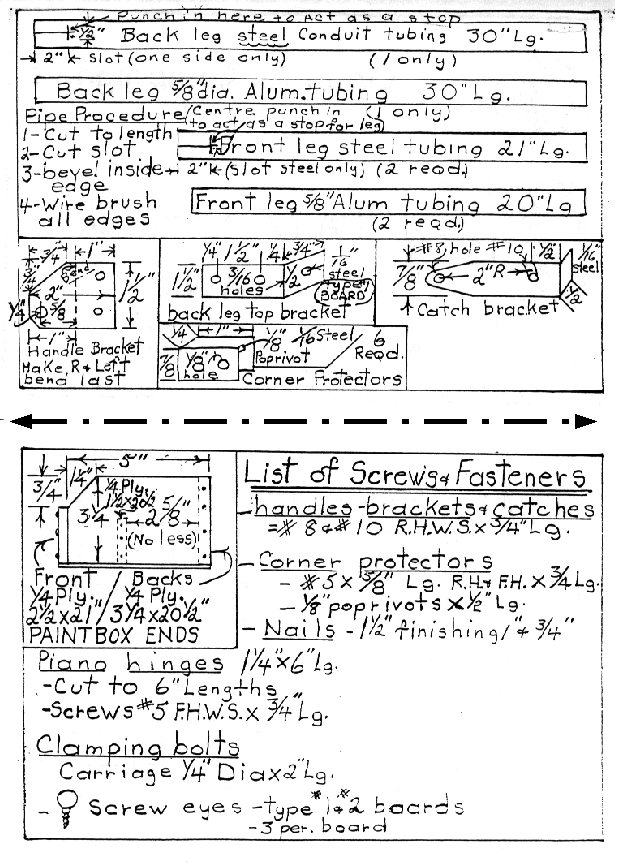

SKETCHBOARD PLANS #5 from OAC Canada.
Additional Details for SKETCHBOARD PLANS #3, #4 and #5 from OAC Canada
